Doosan M1509

What it's for

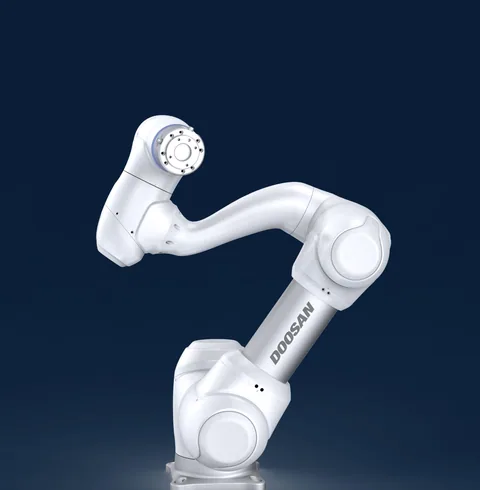

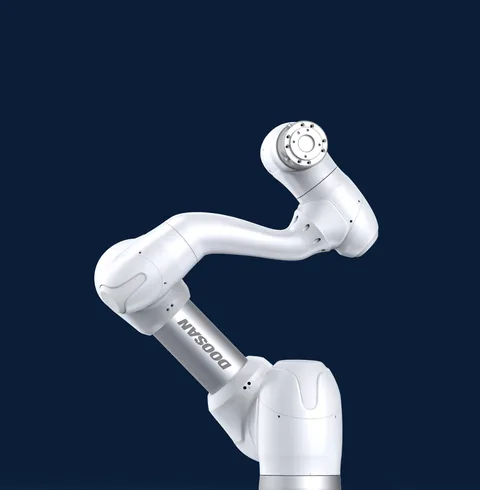

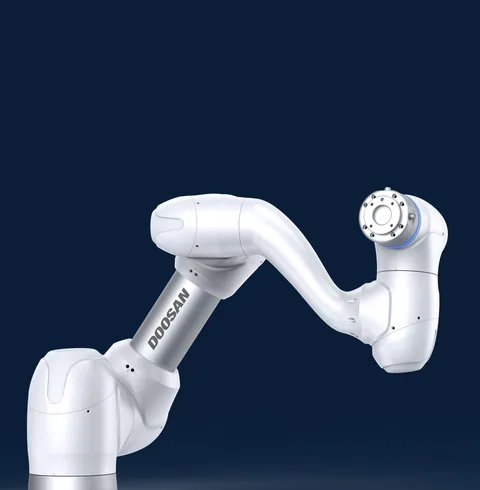

The M1509 is a cobot for workstations where strength matters more than a long arm. It has a 15 kg payload with a 900 mm reach and is the heaviest model in the M series before a customer has to reach for the H or P series. The manufacturer names two applications: machine tending and palletizing. The first scenario is tending a machining center in a narrow cell, with the machine on one side and a rack of semi-finished parts on the other. The short reach is no problem because the parts sit close by, while the mass of a single piece, say an aluminum block or a shaft, can be considerable. Here 15 kg gives a margin the Doosan M1013 does not have. The compact base makes it easier to place the robot where space is scarce, which in a factory is an everyday problem. The second scenario is palletizing at the end of a line: the robot stacks bags or cartons on a pallet in layers. In a warehouse and in a packing hall this makes sense for small and medium pallets. When the pallet has to be tall or the work area wide, the 900 mm reach starts to limit you and the Doosan P3020 (30 kg, 2,030 mm) is the better fit. Common to the whole platform are six degrees of freedom (“Degrees of Freedom (DOF) in Humanoid Robots”) and torque sensors in the joints, thanks to which the cobot can work without a traditional fence, provided the risk assessment confirms it; the rules are covered in the text on “Robot Safety Standards”.

Who it's for

Makes sense for: plants with tight workstations that handle heavy parts, and packing halls with small pallets. The model makes sense when the job is moving mass over a short distance rather than reaching far. In Poland it is available through Transition Technologies-CS (coboty-doosan.pl).

Who it does not suit: stations that need long reach or tall pallets; look at the Doosan H2017 or Doosan H2515 from the H series (20-25 kg), or the P3020 for palletizing. Do not buy it for precision assembly of small components either; the lighter Doosan M0609 is better for that. Overview of the whole class: cobots.

Deployments

We have no confirmed M1509 installations in Poland that we could name by company. What is confirmed is the commercial presence: since 2022 the exclusive Doosan distributor has been Transition Technologies-Control Solutions (coboty-doosan.pl). How the brand's market in Poland looks is described in “Doosan Robotics: Cobots from the Korean Maker in Poland”.

In the 12-16 kg class manufacturers offer similar solutions; below is positioning, not a comparison of figures.

UR16e is a 16 kg cobot from the largest application ecosystem; the choice when ready-made software and many integrators matter.

FANUC CRX-20iA/L has a higher payload and a longer arm, for those to whom 900 mm of reach is not enough.

Doosan H2515 is the upgrade path within the same family when 15 kg stops being enough.

KUKA LBR iisy 15 R930 is a KUKA cobot from the 15 kg class judging by its model name; an option for companies already working on KUKA controls.

The M1509 belongs to the M series, which Doosan Robotics built after the company was founded in 2015 in Suwon; the company listed on the KOSPI exchange in 2023. In the M family it is the most powerful variant: after it comes the H series (20-25 kg), and for palletizing the P series of up to 30 kg. We have no exact launch date for the M1509, so we do not state one. You can find the brand's profile on the page Doosan Robotics.
