PLDEEN
Compare

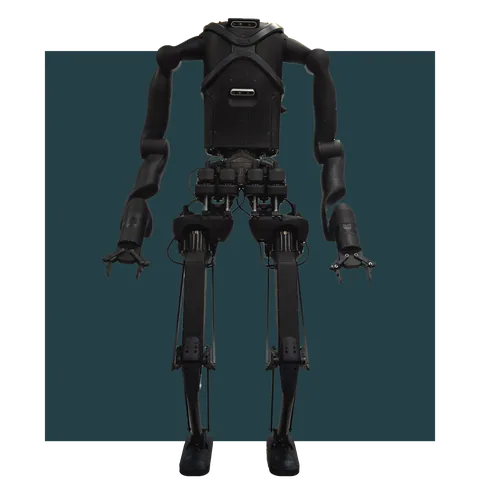

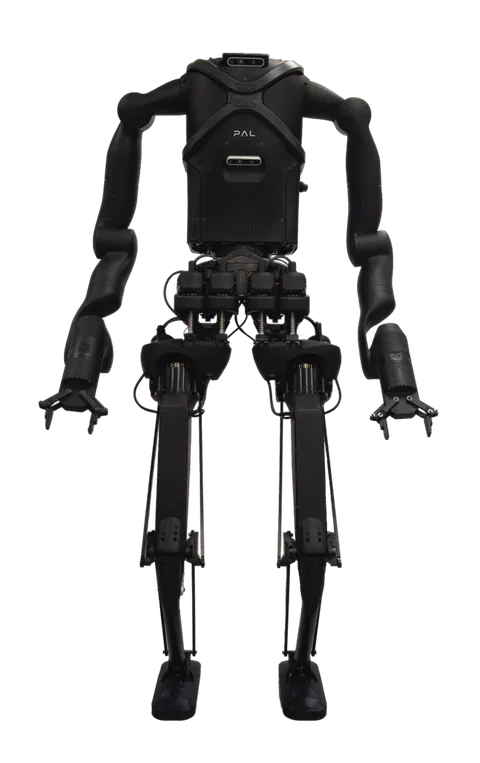

Photo: PAL Robotics, product page (pal-robotics.com)
Humanoid robotsprototype

PAL Robotics Kangaroo

Price from

no public price
Request a quote in Poland All offers Compare
No confirmed distributor in Poland

Pros

  • Arms available as 4, 5 or 7 DOF
  • Up to 30 kg two-handed payload (4-DOF variant)
  • 2 kHz EtherCAT control loop
  • 976 Wh battery, 1.60 m tall, about 58 kg

Cons

  • Battery runtime is not stated
  • No public price, project-based sales
  • Not available in Poland as a commercial product
  • 160cmHeight
  • 7kgPayload
  • 58kgWeight
  • 28DOFDegrees of freedom

Key facts

  • Specificationsheight 160 cm · payload 7 kg · weight 58 kg
  • Statusprototype
  • Availability in Polandnot confirmed
  • VerdictFor labs that want to configure arms to the task; pointless outside research, and no price is given.

Summary

Kangaroo from Spain's PAL Robotics (Barcelona, founded 2004) is a research platform built around modularity: the arms can be ordered in 4-, 5- or 7-DOF versions, which directly changes the payload. The 4-DOF variant lifts 7 kg with one arm extended and as much as 30 kg with both arms, while the more precise 7-DOF variant carries only 3 kg and 25 kg respectively.

The EtherCAT control loop runs at 2 kHz, and the robot weighs about 58 kg in a typical configuration at a height of 1.60 m (the manufacturer gives a range of 50 to 65 kg depending on equipment). A 976 Wh battery (15 Ah/63 V) powers the system, though the runtime is not stated.

Within PAL's own family, compared with the taller and heavier TALOS (175 cm/95 kg, 6 kg payload), Kangaroo favors configuration flexibility over raw strength. Against the commercially available Unitree G1 EDU (132 cm/35 kg), Kangaroo is far more expensive and harder to get, but it offers the full arm configurability typical of laboratory hardware.

The price is not published: PAL sells project by project to research centers, and the robot is not available in Poland as a commercial product.

  • KANGAROO Balance DemoPAL Robotics · Load in the player above
  • Kangaroo ProPAL Robotics · Load in the player above

Photo gallery

Specs

Sources: 2

Size and key figures
Size and key figures: PAL Robotics KangarooHeight comparison: person 175 cm, PAL Robotics Kangaroo 160 cm (91% of a person's height). Payload: 7 kg, category median 7 kg. Weight: 58 kg, category median 63 kg.175 cm160 cmHumanRobotFigures against the category medianPayload7 kgcategory median: 7 kg (n=166)Weight58 kgcategory median: 63 kg (n=192)

Data from manufacturer datasheets and product pages; median over the models of this category in the database.

  • Height160 cm
    −5% vs. the category median (169 cm, n=220)
  • Weight58 kg
    −8% vs. the category median (63 kg, n=192)
  • Degrees of freedom28
    −5% vs. the category median (29.5, n=200)
  • Payload7 kg
    in line with the category median (7 kg, n=166)
  • Battery976 Wh
    in line with the category median (960 Wh, n=52)
  • category medianA higher value doesn't always mean a better robot; it depends on the application.

Dimensions and weight

Height
160 cm
Weight
58 kg

Motion and manipulation

Degrees of freedom
28
Payload
7 kg

Power

Battery
976 Wh

Electronics and AI

Drive
electric (force-controlled actuators)
Sensors
4x RGB-D cameras, IMU/AHRS (1 kHz, 0.25° static / 0.5° dynamic), optional 6-axis force/torque sensors (wrist, feet, leg actuators)
Computing unit
2x Intel i7 (control PC + multimedia PC, 32 GB RAM/1 TB SSD each), optional NVIDIA Jetson GPU

Datasheet (PDF)

Price and availability in Poland

no data

Dealers in Poland

No confirmed distributor in Poland

Applications

Typical applications

  • Research on leg locomotion/biomechanics

Target group

  • research

Comparison

Robot comparison tool

Similar models

  • PAL Robotics TALOS
    on sale

    PAL Robotics

    PAL Robotics TALOS

    PAL Robotics TALOS is a 175 cm/95 kg research humanoid with torque control in nearly every joint, but only 1.5 h of runtime.

    • 175 cmheight
    • 6 kgpayload
    • —price
  • REEM-C
    discontinued

    PAL Robotics

    REEM-C

    • 165 cmheight
    • 1 kgpayload
    • —price

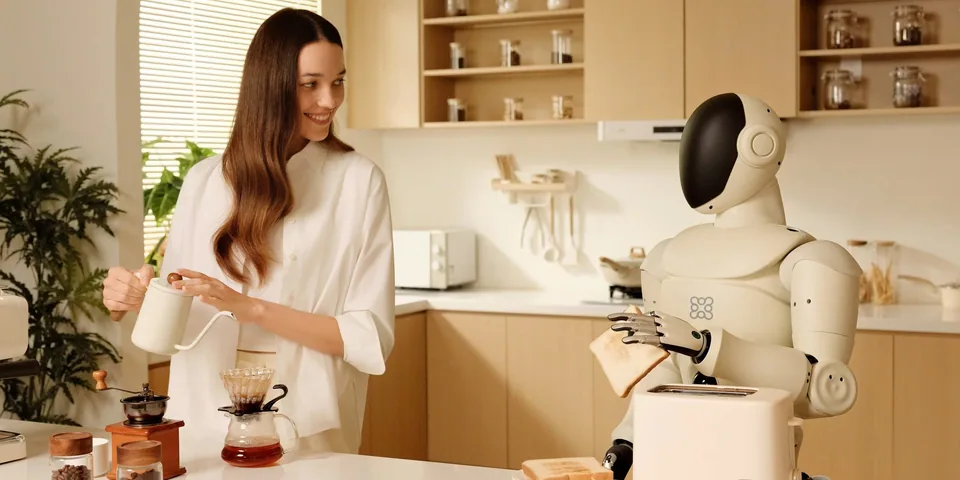

  • Jupiter
    on sale

    Zeroth Robotics

    Jupiter

    • 165 cmheight
    • 58 kgweight
    • —price
  • on sale

    Dobot (Shenzhen Yuejiang Technology)

    Dobot Atom Max

    • 165 cmheight
    • 3.5 kgpayload
    • 447,900*price (PLN)
  • pilot

    BYD Company Limited

    BYD Xiao Di

    BYD Xiao Di: BYD's first humanoid, 161 cm, 31 DOF, used only as a greeter in showrooms, no price.

    • 161 cmheight
    • 1 kgpayload
    • —price
  • on sale

    Lumos Robotics

    LUS 2 (LUS2)

    • 160 cmheight
    • 3 kgpayload
    • —price

History

no data

Sources

  1. pal-robotics.com
  2. pal-robotics.com

Frequently asked questions

Is the PAL Robotics Kangaroo available in Poland?

No. The PAL Robotics Kangaroo is a prototype or research platform with no commercial offer in Poland; any sale would be announced by the manufacturer (Spain).

What payload does the PAL Robotics Kangaroo have?

It depends on the arm variant: 4-DOF lifts 7 kg with one hand or 30 kg with both, and the more precise 7-DOF lifts 3 kg and 25 kg respectively.

What are Kangaroo's weight and height?

The manufacturer gives a weight range of 50 to 65 kg depending on configuration, at a height of 1.60 m; the midpoint value of 58 kg is used here.

Can the Kangaroo be bought in Poland?

No. It is a research platform sold project by project to scientific institutions and is not commercially available on the Polish market.
