Ardal

Seventeen kilometres under fire to bring back three wounded soldiers who could not be evacuated for a month: that April 2025 mission, reported by Texty.org.ua, made the Ardal one of Ukraine's best-known casualty-evacuation robots.

Price from

no public price
No confirmed distributor in Poland
  • 250kgPayload

Key facts

  • Specificationspayload 250 kg
  • Statusin service
  • Availability in Polandnot confirmed

Summary

Seventeen kilometres under fire to bring back three wounded soldiers who could not be evacuated for a month: that April 2025 mission, reported by Texty.org.ua, made the Ardal one of Ukraine's best-known casualty-evacuation robots.

The tracked platform comes from the design bureau KB BUREVII, led by director Viktor Dolhopiatov, was developed in 2024 with Brave1 backing and has served with the Ukrainian Armed Forces since then. It carries 250 kg – a casualty on a stretcher or supplies – and fits inside a European pickup.

The drive is electric, and the chassis shows front-line lessons: a cast, reinforced track, dynamic tensioning, sprung suspension and a sealed hull. Control is remote. Weight, speed, range and endurance have not been published and remain open.

The basic Ardal is unarmed; a variant carries the Burya weapon station from Frontline Robotics with a 40 mm Mk 19 automatic grenade launcher, showing how one carrier covers both evacuation and fire support. Pricing is on request.

In a similar role the Czech wheeled Trail-Blazer carries 350 kg, and the same Burya turret has been fitted to the German GEREON RCS and the Estonian THeMIS.

Specs

Sources: 2

  • Payload250 kg
    −33% vs. the category median (375 kg, n=44)
  • category medianA higher value doesn't always mean a better robot; it depends on the application.

Motion and manipulation

Payload
250 kg

Electronics and AI

Drive
electric, cast reinforced track, dynamic tensioning, sprung suspension, sealed hull

Additional specs

Subcategory
military
Design type
tracked evacuation and logistics UGV
Control
remote control
Operators
Ukraine (Brave1)
Armed
no
Country of origin
UA

Price and availability in Poland

no data

Dealers in Poland

No confirmed distributor in Poland

Applications

Typical applications

  • casualty evacuation, resupply, fire support (variant)

Target group

  • land forces, battlefield medical services

Comparison

Robot comparison tool

Similar models

  • discontinued

    Sarcos Technology and Robotics (now Palladyne AI)

    Guardian S

    • 7.7 kgweight
    • 4.5 kgpayload
    • —price
  • in service

    Isolit-Bravo

    Trail-Blazer

    • 350 kgpayload
    • 8 hruntime
    • —price
  • PIAP GRYF
    on sale

    Sieć Badawcza Łukasiewicz – PIAP (Przemysłowy Instytut Automatyki i Pomiarów)

    PIAP GRYF

    • 48 kgweight
    • 15 kgpayload
    • —price

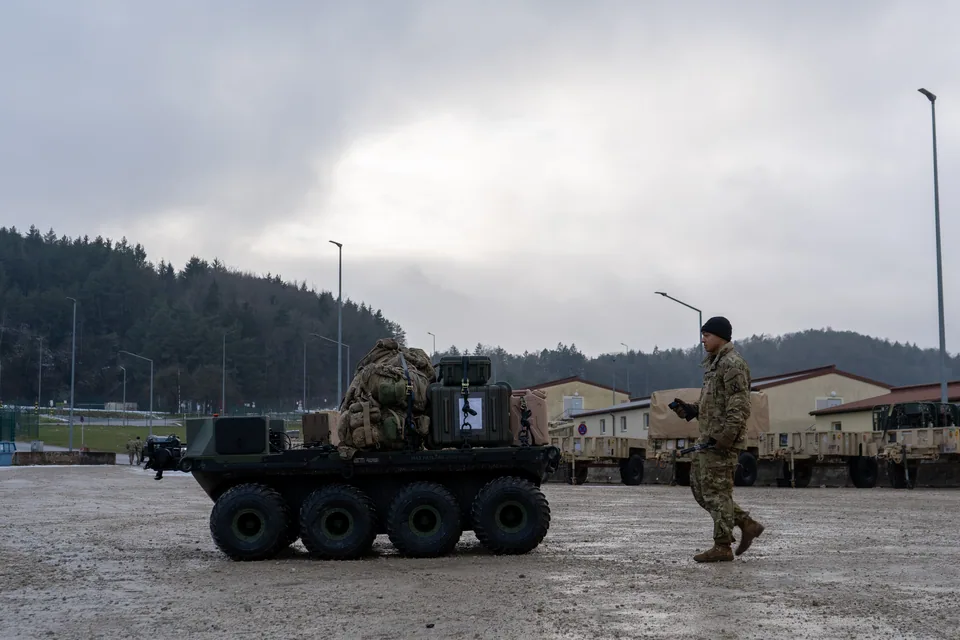

  • S-MET (MUTT 8x8)
